Cost Breakdown

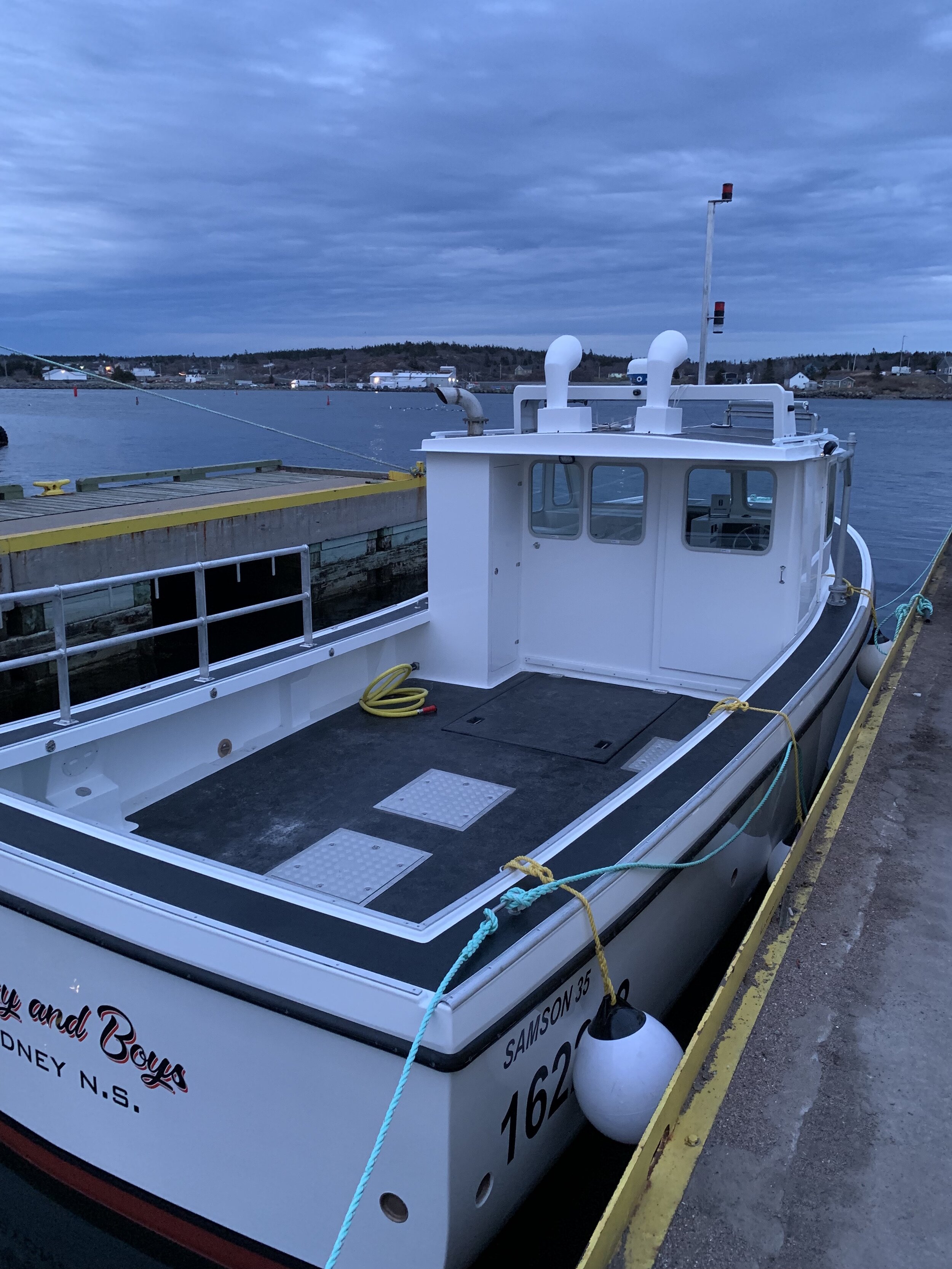

Deck Hatches - 3pcs Aluminum set in S.S frames. Common size 24 x 24 (Any size available) - 1pc 24 x 36 - 19 x 19 Bomar Hatch in cuddy - Water tight, 5' x 4' fiberglass hatch over engine Shaft Assembly Straight shaft assembly & installation complete with: - 13' x 2 1/4” 316 stainless steel shafts with brass nut - Fiberglass shaft log - 4 bolt heavy duty steady bearing - Shaft coupling - Anodes - Dripless shaft system (2 1/4”) Hy torque propeller blade 28" - 30"  Steering Installation Single station power steering complete with: - Hydraulic pump with pulley, 6-gal S.S tank, 1 gal reservoir, belt and mounting bracket  - Steering unit with 15" S.S steering wheel, S.S spindle and mounting plate  - Dual ram steering, unit with nitrated steel piston shafts - Hydraulic hoses, fittings - 2" S.S rudder stock and 28" X 26" X 1/4" and S.S rudder with support wings Engine Installation - Installation, alignment and bolting - Solid fiberglass engine beds - 1pcs 2” thru hulls, seacock, bronze fittings, hoses & heavy-duty clamps strainer Fuel Tanks Installation - 2 Stainless steel fuel tanks constructed with 1/8” 2B finish plate - 2" fill lines and 2" stainless steel deck fills - 1" vent lines - Shut off valve - 3/8" return line to one tank - 2 tank whistlers -  200 gal Electrical - Custom 20 circuit breaker panel with 100 amp main breaker and ammeter - Group 8D Cranking Battery (2pcs) - Battery box #4 electrical mains, #2/0 starter cables - 4 running lights - port, starboard, stern & masthead - Stainless steel dome lights (6pcs) - 7” Search Light (Jabsco 200,000 Candle Power) - Pantograph windshield wipers - heavy duty - Rule 3700 GPH bilge pump, 3-way switch, float, hose - Deck Lights (2pcs) - 4 gang way switch - 3 way bilge switch - Engine room lights (2pcs) Wash-down/Bailing pump Installation - Jabsco 1 1/2" 3-way ball valve - Bronze fittings - 1 ½ " thru hull and seacock - Reinforced PVC hoses - Fire hose with Lexon nozzle and polypropylene quick disconnect fittings Accommodations - Table with benches  - Top and bottom bunks  - Cupboard and counter tops - Manual marine toilet with brass fittings, thru hulls, including enclosure

Deck Hatches

Shaft Assembly

Steering Installation

Engine Installation

Fuel Tanks Installation

Electrical

Wash-down/Bailing pump Installation

Accommodations

Additional Items Available

- Sliding PVC Windows: Starboard and Port Side

- Cage

- Lettering

- Fish Holds

- Extra roof and side wall with closet & compartment

- SS Grab Rails on Wheelhouse and Cuddy Roof

- Bow Thruster

- Door in centre, Second steering
