Cost Breakdown

Deck Hatches - 3pcs Aluminum set in S.S frames. Common size 24 x 24 (Any size available) - 1pc 24" x 36" - 19" x 19" Bomar Hatch in cuddy - Water tight, 5' x 4' fiberglass hatch over engine Shaft Assembly Straight shaft assembly & installation complete with: - 13' x 2 ½” 316 stainless steel shafts with brass nut - Fiberglass shaft log - 4 bolt heavy duty steady bearing - Shaft coupling - Anodes - Dripless shaft system (2 ½”) "Hy torque propeller blade 28" - 30" * Price subject to change based on economic conditions Steering Installation Single station power steering complete with: - Hydraulic pump with pulley, 6-gal S.S tank, 1 gal reservoir, belt and mounting bracket  - Steering unit with 15" S.S steering wheel, S.S spindle and mounting plate  - Dual ram steering, unit with nitrided steel piston shafts - Hydraulic hoses, fittings - 2" S.S rudder stock and 28" X 26" X 1/4" and S.S rudder with support wings Engine Installation - Installation, alignment and bolting - Solid fiberglass engine beds - Dry exhaust system with 4" muffler and water pipes Fuel Tanks Installation - 2 Stainless steel fuel tanks constructed with 1/8” 2B finish plate - 2" fill lines and 2" stainless steel deck fills - 1" vent lines - Shut off valve - 3/8" return line to one tank - 2 tank whistlers - 200 gal Electrical Installation - Custom 20 circuit breaker panel with 100 amp main breaker and ammeter - Group 8D Cranking Battery (2pcs) - Battery box #4 electrical mains, #2/0 starter cables - 4 running lights - port, starboard, stern & masthead -  Stainless steel dome lights (6pcs) -  7” Search Light (Jabsco 200,000 Candle Power) -  Pantograph windshield wipers - heavy duty -  Rule 3700 GPH bilge pump, 3-way switch, float, hose -  Deck Lights (2pcs) -  4 gang way switch -  3 way bilge switch -  Engine room lights (2pcs) Wash-down/Bailing pump Installation - Jabsco 1 1/2" 3-way ball valve - 1 ½ " thru hull, seacock, bronze fittings & reinforced PVC hoses - Fire hose with Lexon nozzle and polypropylene quick disconnect fittings Accommodations - Table with benches  - Top and bottom bunks  - Cupboard and countertops - Washroom enclosure

Deck Hatches

Shaft Assembly

Steering Installation

Engine Installation

Fuel Tanks Installation

Electrical System Installation

Wash-down/Bailing Pump Installation

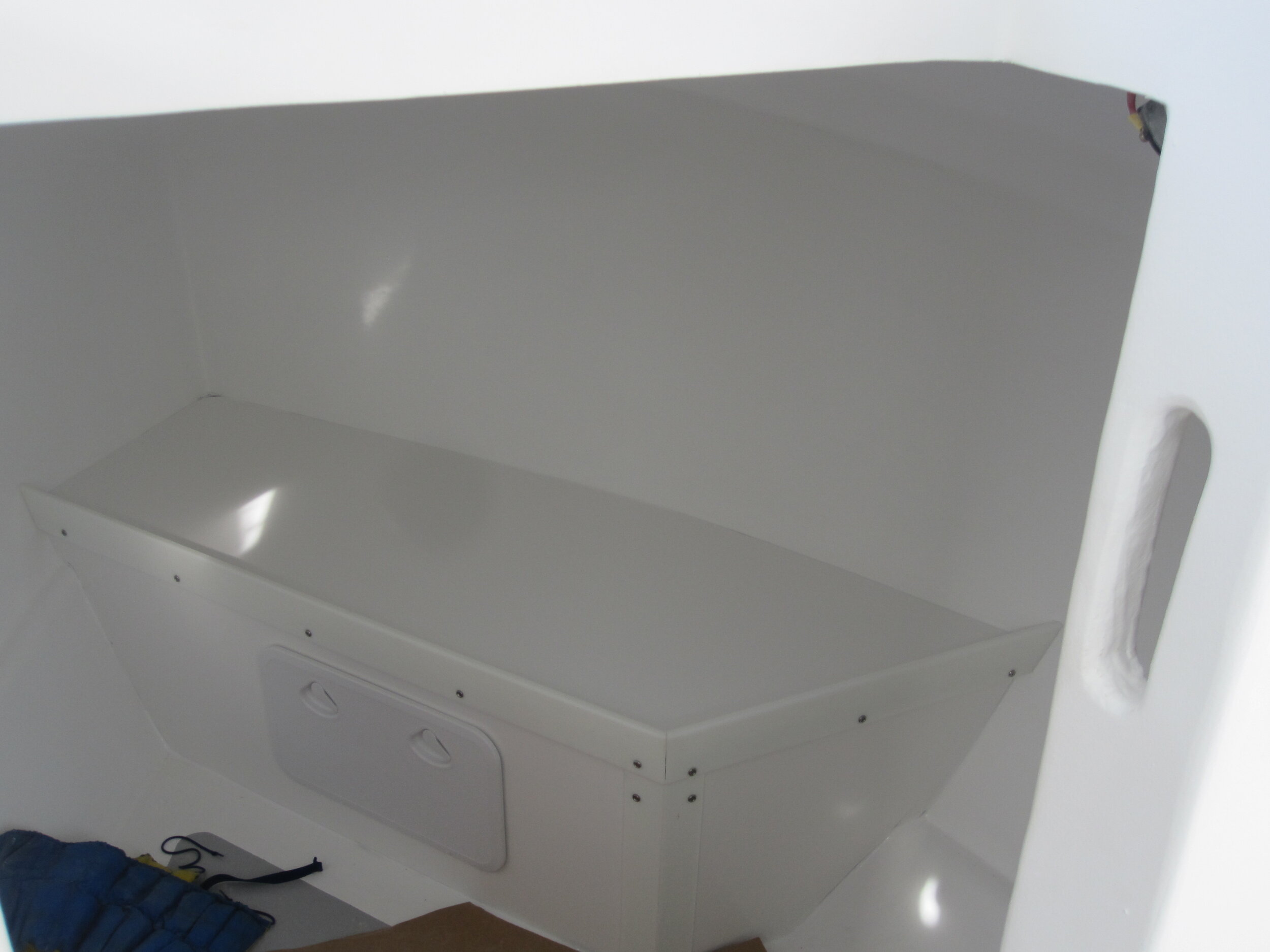

Accommodations

Additional Items Available

- Galvanized Steel Prop Cage

- Sliding Window PVC: Starboard and Port Side

- Lettering

-  4 Outlet Engine Heater

- Manual marine toilet with brass fittings and thru hulls

- Wear Patch
