Deck Hatches Installation - 3pcs FRP 24" x 36" - 20 x 20 Bomar hatch in cuddy - 4pcs FRP Hatches 40' x 40' - 24" x 60" aluminum boman door for engine room *Aluminum hatches optional if required Shaft Assembly Straight shaft assembly & installation complete with: - 14' 6" x 2 3/4” 316 S.S shaft with brass nut - 7ft Fiberglass shaft log - Shaft coupling - Anodes 2 3/4 - Dripless shaft system - Hy Torque propeller blade 36" *Prices for propellers are subject to change based on economic conditions Single station power steering complete with: - Steering unit with 15" S.S steering wheel, S.S spindle, mounting plate - Dual Ram steering unit nitrided steel piston shafts 2 1/2" - 2 1/2" S.S rudder stock and 34" x 34" x 3/8" S.S Rudder with support wings - 2 1/2" Packing box Fuel Tanks Installation - 2 S.S fuel tanks constructed with 1/8” 2B finish plate - 2” fill lines & 2” stainless steel deck fills - 1” vent lines - 1/2” Fuel Hose to engine from one tank - Shut off valve - Inter-connecting line (3/4” hose) - 3/8” return line to one tank - 2 tank whistlers - 200 Gal each Wash-down/Bailing Pump Installation - 11/2" 3-way ball valve - Bronze fittings - 1 1/2" thru hull and seacock - Reinforced PVC hoses - 2" Hydraulic Wash Down Pacer - Fire hose with Lexon nozzle and polypropylene quick disconnect fittings Electrical System Installation - Custom 20 circuit breaker panel with 100-amp main breaker and ammeter - 4 pcs Group 8D cranking battery - Battery box #2 electrical mains, #2/0 starter cables - 4 running lights (Port, starboards, stern, masthead) - Stainless steel dome lights 10pcs - 2 Pantograph windshield wipers - heavy duty - Rule 3700 GPH bilge pump, 3-way switch, float and hose - 2000 bilge pump for engine room - Deck light & Engine room Lights Engine Installation - Installation, alignment & bolting - Fiberglass engine beds - Bronze fittings, hoses & heavy-duty clamps and strainer - 8" Wet Exhaust Manual Tabsco Toilet - Toilet with 9L holding tank and Y valve to overboard Accommodations - Marine Head Enclosure - Table with benches - Top and bottom bunks - Cupboard and countertop

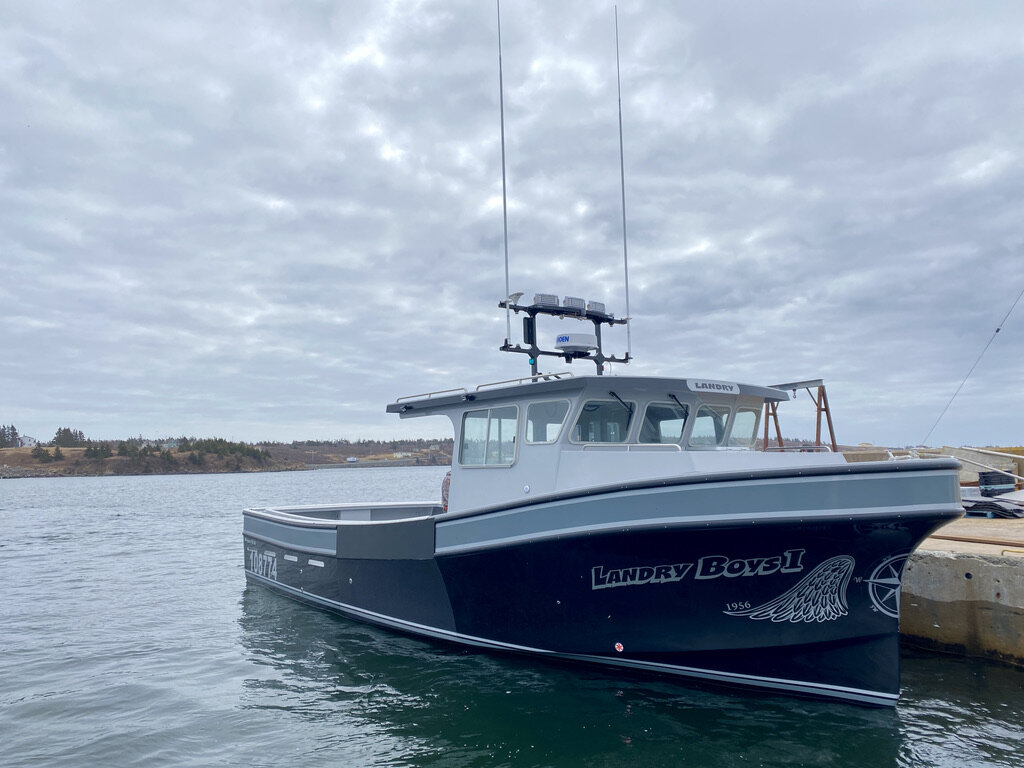

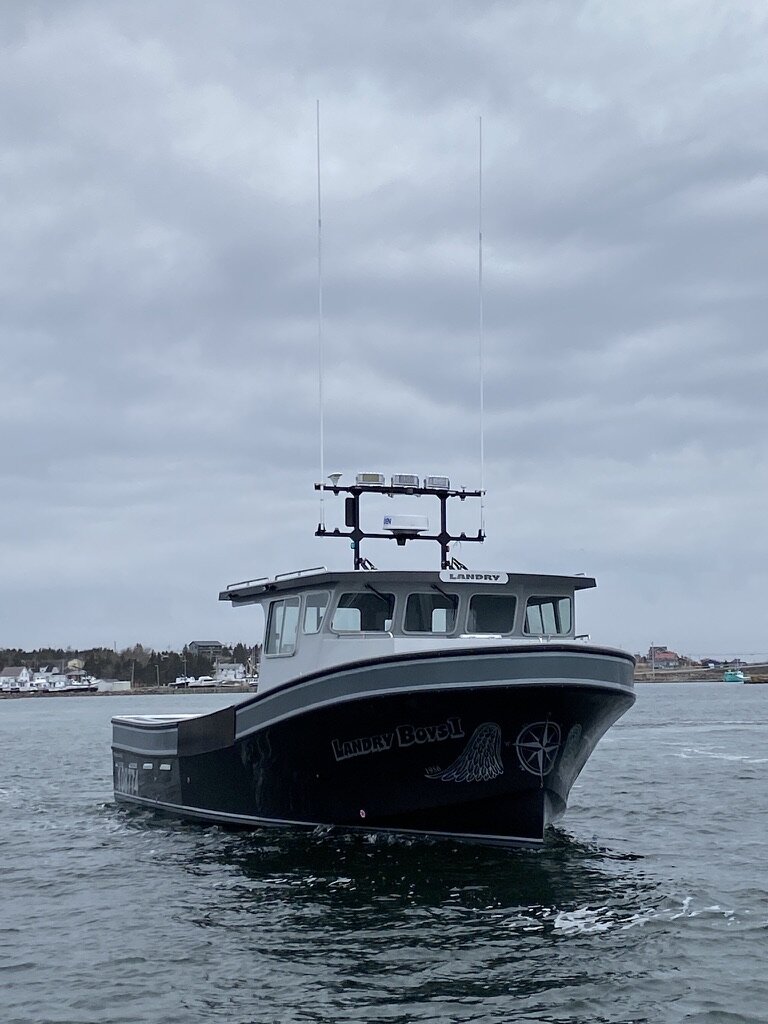

Magna 45 XL

Turnkey Package
